> >Kawasaki FX691V-S00-S Vertical Engine with Electric Shift-Type Start
Kawasaki FX691V-S00-S Vertical Engine with Electric Shift-Type Start View larger

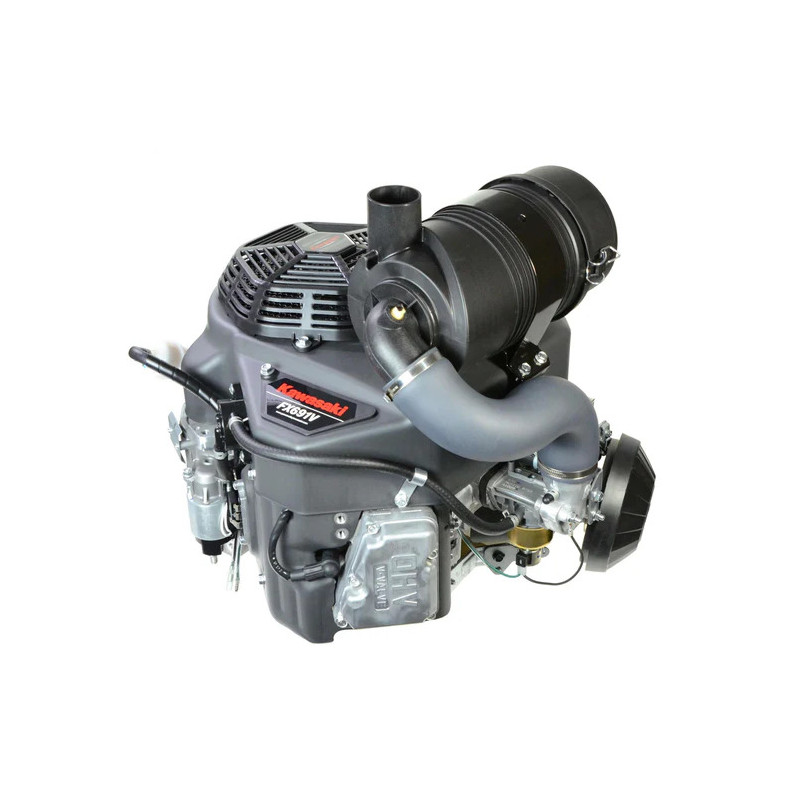

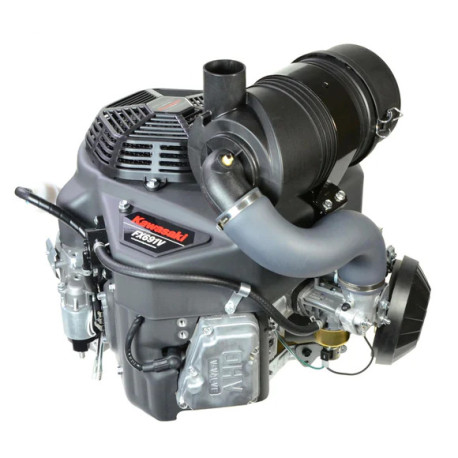

Kawasaki FX691V-S00-S Vertical Engine with Electric Shift-Type Start

RE174

New product

Kawasaki FX691V-S00-S Vertical OHV 4-Cycle Air-Cooled V-Twin Engine, 1-1/8" x 4-9/32" Crankshaft, 726cc, 22.0 HP, Electric Shift Type Start with 15 Amp Charging, Heavy Duty Canister Air Filter, Without Muffler

More details

1000 Items

In stock

USD 1,269.00

More info

Kawasaki FX691V-S00-S Vertical Engine with Electric Shift-Type Start

Engine Information
Brand
Kawasaki
Model Number
FX691V-S00-S
Internal ID
KAW-FX691V-S00-S
Replaces Models
FX651V-CS00-R, FX691V-DS04, FX691V-FS11-R, FS691V-S13-R, FX691V-ES16-R, FX691V-AS18-R, FX691V-BS18-R, FX691V-DS18-R, FX691V-BS20-R
Warranty
3 Years
Available to California
Not Available to Ship to California
What's in the Box
Includes engine, owner's manual and exhaust gaskets.
Dimensions
Weight
119.0 lb
Power
Displacement
726cc
Power Output
22.0 HP @ 3600 RPM
Torque
39.4 lb-ft @ 2200 RPM
Crankshaft
Orientation
Vertical
Diameter
1-1/8" (28.5mm)
Length
4-9/32" (108.8mm)
Dimensions
1-1/8" (28.5mm) x 4-9/32" (108.8mm)
Rotation Direction
Counter-Clockwise
Other Engine Specifications
Starter Type
Electric Shift Type
Ignition System
Electronic
Carburetor
With Fuel Shut-Off Solenoid
Number of Cylinders
Two
Cylinder Bore
Cast Iron Liners
Air Cleaner
Heavy Duty Canister
Oil Capacity
2.2 qt
Fuel
Gasoline
Fuel Pump
Pulse
Governor System
Mechanical
Lubrication System
Pressurized with Oil Filter
Controls
Dual Cable
Bore x Stroke
3.1" x 3.0"
Compression Ratio
8.2 : 1
Charging System
15 Amp
Muffler
Not Included
Engine Notes
Metal shrouds with clean out ports
Applications
Equipment Manufacturers
Ariens, Bad Boy, Dixie Chopper, Doosan Bobcat, Excel, Exmark, Ferris, Husqvarna, Hustler, Jacobsen, John Deere, KMC, MTD, Scag, Toro, WorldLawn, Wright Manufacturing
Equipment Types
Commercial Mowers, Heavy Duty Industrial & Construction Equipment, Zero Turn Mowers
