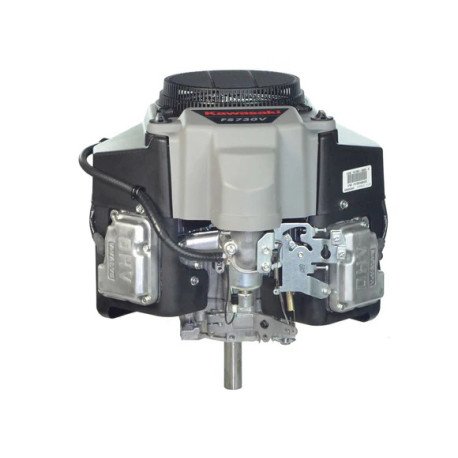

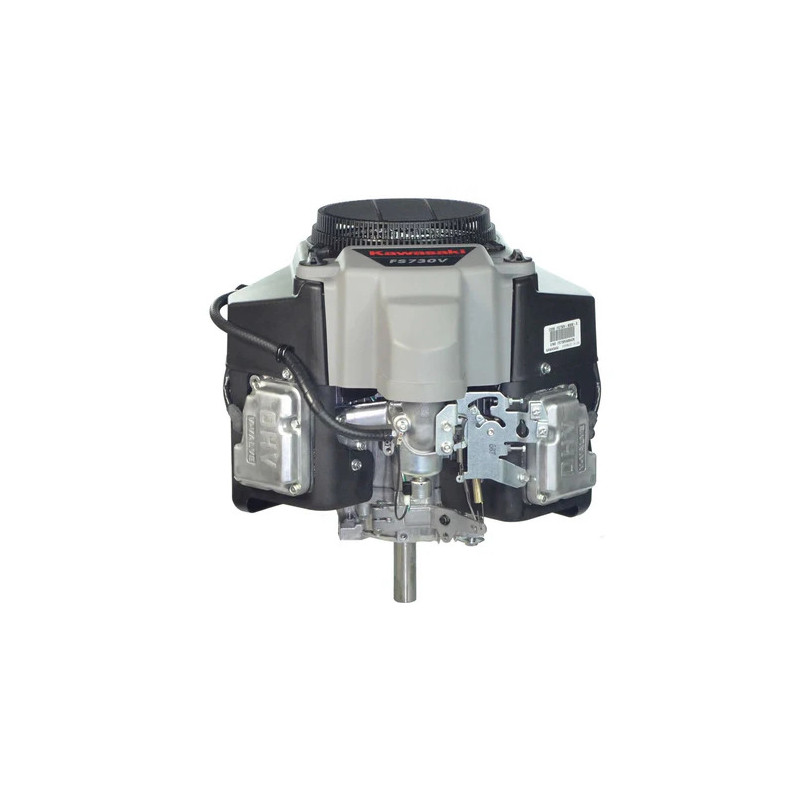

> >Kawasaki FS730V-S00-S Vertical Engine with Electric Start
Kawasaki FS730V-S00-S Vertical Engine with Electric Start View larger

Kawasaki FS730V-S00-S Vertical Engine with Electric Start

RE171

New product

Kawasaki FS730V-S00-S Vertical OHV 4-Cycle Air-Cooled V-Twin Engine, 1-1/8" x 4-9/32" Crankshaft, 726cc, 24 HP, Bendix Electric Start with 15 Amp Charging, Without Muffler

More details

1000 Items

In stock

USD 1,278.00

More info

Kawasaki FS730V-S00-S Vertical Engine with Electric Start

Engine Information
Brand
Kawasaki
Model Number
FS730V-S00-S
Internal ID
KAW-FS730V-S00-S
Replaces Models
FS651V-BS17-R, FS730V-AS12-R, FS730V-BS13-R, FS730V-CS13-R, FS730V-BS17-R, FS730V-CS17-R, Kohler MV20-57510
Warranty
3 Years
Available to California
Not Available to Ship to California
What's in the Box
Includes engine, owner's manual and exhaust gaskets.
Dimensions
Weight
125.0 lb
Power
Displacement
726cc
Power Output
24.0 HP @ 3600 RPM
Torque
40.0 lb-ft @ 2400 RPM
Crankshaft
Orientation
Vertical
Diameter
1-1/8" (28.5mm)
Length
4-9/32" (108.8mm)
Dimensions
1-1/8" (28.5mm) x 4-9/32" (108.8mm)
Rotation Direction
Counter-Clockwise
Other Engine Specifications
Starter Type
Electric Bendix
Ignition System
Electronic
Carburetor
Single Barrel
Number of Cylinders
Two
Cylinder Bore
Cast Iron Liners
Air Cleaner
Dual Element
Oil Capacity
2.1 qt
Fuel
Gasoline
Fuel Pump
Pulse
Governor System
Mechanical
Lubrication System
Pressurized with Oil Filter
Controls
Dual Cable
Bore x Stroke
3.1" x 3.0"
Compression Ratio
8.2 : 1
Charging System
15 Amp
Muffler
Not Included
Engine Notes
Gen 2 air filter housing with clean out ports
Applications
Equipment Manufacturers
Ariens, Bad Boy, Country Clipper, Dixie Chopper, Excel, Husqvarna, Hustler, Jacobsen, KMC, Kubota, Rhino, Scag, Spartan
Equipment Types
Lawn & Garden Tractors, Stand On Mowers, Wide Area Walk Behind Mowers, Zero Turn Mowers
