> >Briggs & Stratton 33S877-0019-G1 Vertical Engine with Electric Start, Replaces 33R877-0003-G1

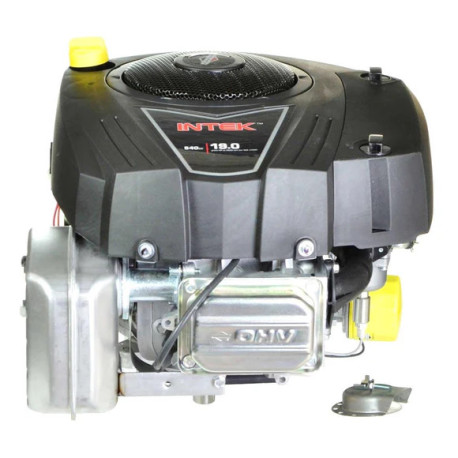

Briggs & Stratton 33S877-0019-G1 Vertical Engine with Electric Start, Replaces 33R877-0003-G1 View larger

Briggs & Stratton 33S877-0019-G1 Vertical Engine with Electric Start, Replaces 33R877-0003-G1

RE64

New product

Briggs & Stratton 33S877-0019-G1 Intek 540cc Vertical Engine, 19.0 Max HP, 1" x 3-5/32" Crankshaft, 7/16"-20 Drilled & Tapped, 1/4" Keyway, 12V Electric Gear Drive Start with 9 Amp Alternator, Oil Pump with Filter, Fuel Pump, Muffler, Replaces 33R877-0003-G1 and 331977-0001-G1

More details

1000 Items

In stock

USD 525.00

More info

Briggs & Stratton 33S877-0019-G1 Vertical Engine with Electric Start, Replaces 33R877-0003-G1

Engine Information
Brand
Briggs & Stratton
Model Number
33S877-0019-G1
Internal ID
BS-33S877-0019-G1
Replaces Models
33R877-0003-G1, 331977-0001-G1, 331877-3036-G5, 331877-0036-G1, 331877-0036-E1, 31P977-0036-E1, 31P877-0036-E1, 31P877-0110-E2, 331877-2371-G5, 31P677-0125-G5, BAS8111
Warranty
2 Year Consumer / 1 Year Commercial
Available to California
Not Available to Ship to California
Dimensions
Weight
77.0 lb
Power
Displacement
540cc
Power Output
19.0 Gross HP
Max RPM
3600
Crankshaft
Orientation
Vertical
Type
Straight
Diameter
1"
Length
3-5/32"
Dimensions
1" x 3-5/32"
End Tapped Size
7/16"-20
Rotation Direction
Counterclockwise
Other Engine Specifications
Ignition System
Electronic
Carburetor
Float
Number of Cylinders
One
Cylinder Bore
Cast Iron Sleeve
Air Cleaner
Dual Element
Oil Cooler
No
Oil Capacity
48 oz
Low Oil Alert
No
Low Oil Shutdown
No
Fuel
Gasoline
Fuel Tank Capacity
None
Fuel Pump
Yes
Governor System
Mechanical
Controls
Remote, Choke-A-matic
Bolt Circle
10"
Charging System
9 Amp DC Alternator
Flywheel
Heavy
Applications
Equipment Manufacturers
Allis Chalmers, Bad Boy, Country Clipper, Craftsman, Cub Cadet, Dixie Chopper, Exmark, Gravely, Huskee, Husqvarna, Hustler, John Deere, Kubota, Massey Ferguson, New Holland, Scag, Simplicity, Swisher, Toro, Troy Bilt
Equipment Types
Brush Mowers, Lawn & Garden Tractors, Riding Mowers, Tow Behind Mowers, Stand On Mowers, Zero Turn Mowers
