> >Briggs & Stratton 356447-0054-F1 Horizontal Vanguard Engine, Replaces 356447-0596-F1

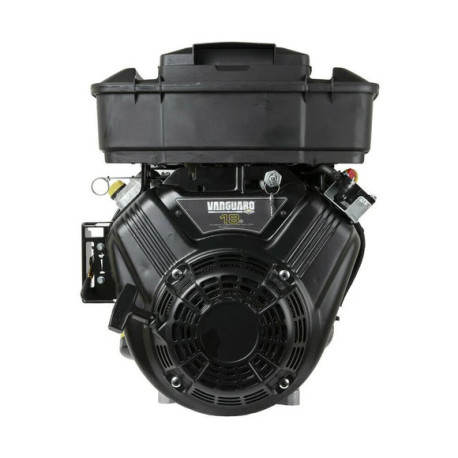

Briggs & Stratton 356447-0054-F1 Horizontal Vanguard Engine, Replaces 356447-0596-F1 View larger

Briggs & Stratton 356447-0054-F1 Horizontal Vanguard Engine, Replaces 356447-0596-F1

RE127

New product

Briggs & Stratton 356447-0054-F1 Horizontal Vanguard 18.0 Gross HP Engine, 570cc, 1" x 3" Crankshaft, 1/4" Keyway, 3/8"-24 Drilled & Tapped, No Muffler, 12 Volt Gear Drive Start with 20 Amp DC Alternator, 6.95 qt Fuel Tank, Replaces 356447-0596-F1

More details

1000 Items

In stock

USD 1,129.00

More info

Briggs & Stratton 356447-0054-F1 Horizontal Vanguard Engine, Replaces 356447-0596-F1

Engine Information
Brand
Briggs & Stratton
Model Number
356447-0054-F1
Internal ID
BS-356447-0054-F1
Replaces Models
356447-0596-F1, 356447-0096-B1, 356447-0096-E9, 356447-0096-E1
Warranty
3 Year Limited
Available to California
Not Available to Ship to California
What's in the Box
Includes engine, owner's manual and exhaust gaskets.
Dimensions
Weight
63.0 lb
Power
Displacement
570cc
Power Output
18.0 Gross HP
Max RPM
3600
Crankshaft
Orientation
Horizontal
Diameter
1"
Length
3"
Dimensions
1" x 3"
End Tapped Size
3/8"-24
Keyway
1/4"-Sq
Other Engine Specifications
Starter Type
12 Volt Gear Drive
Carburetor
Float
Number of Cylinders
Two
Air Cleaner
Dual-Clean Pleated Paper with Foam Pre-Cleaner
Oil Capacity
48 fl. oz.
Fuel Tank Capacity
6.95 qt
Fuel Pump
Yes
Lubrication System
Full Pressure with Spin-On Oil Filter
Controls
Adjustable / Manual Friction / Remote
Bore x Stroke
2.83" x 2.76"
Charging System
20 Amp DC Alternator
Muffler
No
Engine Notes
Manual and Remote Choke, Flange Mounting
