> >Briggs & Stratton 386447-0438-G1 Horizontal Vanguard Engine, Replaces 386447-3065-G1

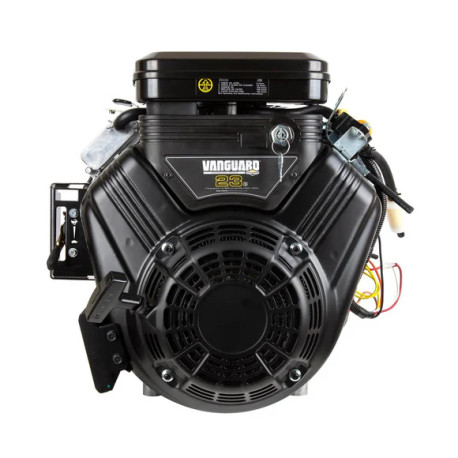

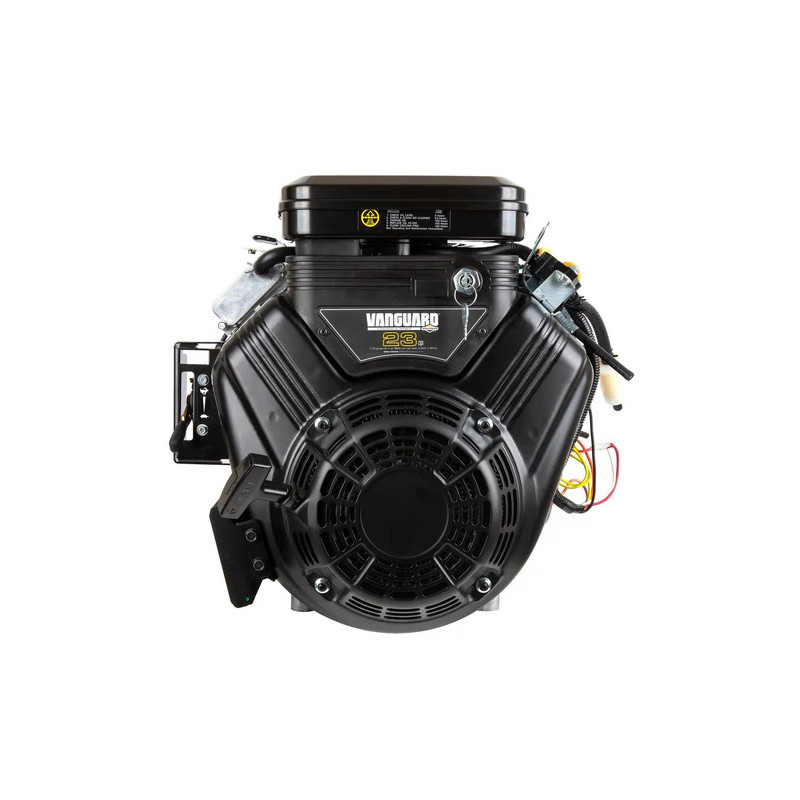

Briggs & Stratton 386447-0438-G1 Horizontal Vanguard Engine, Replaces 386447-3065-G1 View larger

Briggs & Stratton 386447-0438-G1 Horizontal Vanguard Engine, Replaces 386447-3065-G1

RE125

New product

Briggs & Stratton 386447-0438-G1 Horizontal Vanguard 23.0 Gross HP Engine, 627cc, 1" x 3" Crankshaft, 1/4" Keyway, 3/8"-24 Drilled & Tapped, No Fuel Tank or Muffler, 12 Volt Gear Drive Start with 16 Amp DC Alternator, Suppress Afterfire Solenoid, Replaces Models 386447-3065-G1 and 386447-0065-G1

More details

1000 Items

In stock

USD 1,084.00

More info

Briggs & Stratton 386447-0438-G1 Horizontal Vanguard Engine, Replaces 386447-3065-G1

Engine Information
Brand
Briggs & Stratton
Model Number
386447-0438-G1
Internal ID
BS-386447-0438-G1
Replaces Models
386447-3065-G1, 386447-0065-G1, 386447-0065-E1
Warranty
3 Year Limited
Available to California
Not Available to Ship to California
What's in the Box
Includes engine, owner's manual and exhaust gaskets.
Dimensions
Weight
100.0 lb
Power
Displacement
627cc
Power Output
23.0 Gross HP
Max RPM
3600
Crankshaft
Orientation
Horizontal
Diameter
1"
Length
3"
Dimensions
1" x 3"
End Tapped Size
3/8"-24
Keyway
1/4"-Sq
Other Engine Specifications
Starter Type
12 Volt Gear Drive
Carburetor
Float
Number of Cylinders
Two
Air Cleaner
Dual-Clean Pleated Paper with Foam Pre-Cleaner
Oil Cooler
Yes
Oil Capacity
48 fl. oz.
Fuel Tank Capacity
None
Fuel Pump
Yes
Lubrication System
Full Pressure with Spin-On Oil Filter
Controls
Manual Friction / Remote
Bore x Stroke
2.97" x 2.76"
Charging System
16 Amp DC Alternator
Muffler
No
Engine Notes
Remote and Manual Choke, Flange Mounting, Suppress Afterfire Solenoid
Applications
Equipment Manufacturers
Club Car
Equipment Types
Golf Carts
