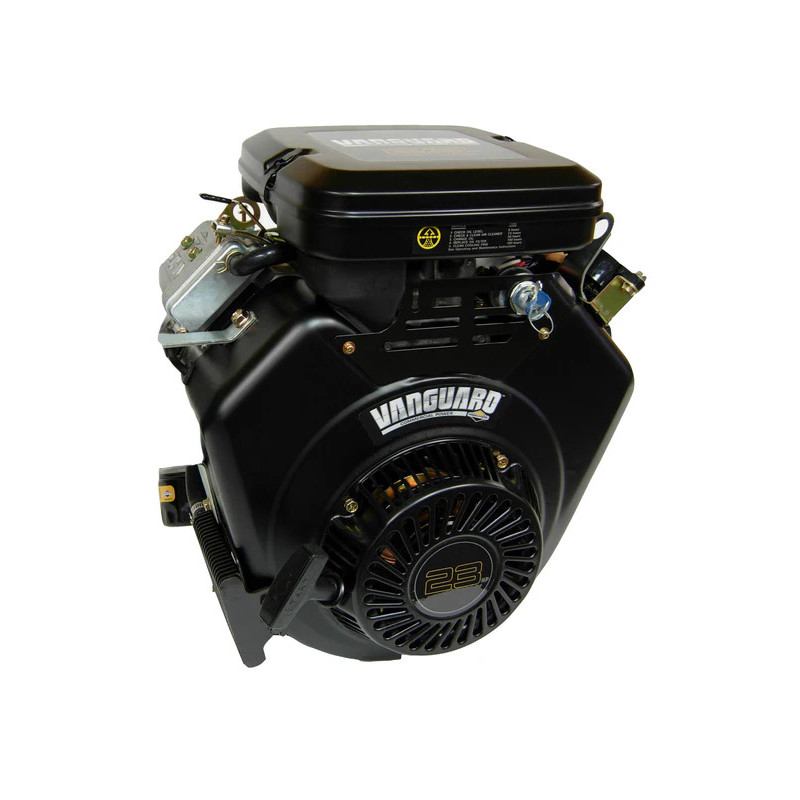

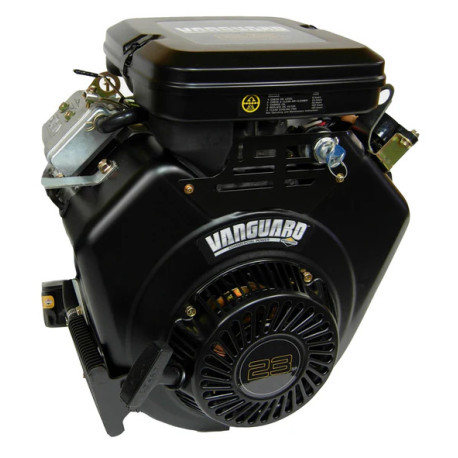

> >Briggs & Stratton 386447-0475-G1 Vertical Engine, Replaces 386447-3077-G1
Briggs & Stratton 386447-0475-G1 Vertical Engine, Replaces 386447-3077-G1 View larger

Briggs & Stratton 386447-0475-G1 Vertical Engine, Replaces 386447-3077-G1

RE120

New product

Briggs & Stratton 386447-0475-G1 Vertical Vanguard Engine, Replaces 386447-3077-G1, 627cc 23 Gross HP V-Twin OHV Electric Start Horizontal Engine, 1" x 3-1/4" Threaded 1-14

More details

1000 Items

In stock

USD 1,077.00

More info

Briggs & Stratton 386447-0475-G1 Vertical Engine, Replaces 386447-3077-G1

Engine Information
Brand
Briggs & Stratton
Model Number
386447-0475-G1
Internal ID
BS-386447-0475-G1
Replaces Models
386447-3077-G1
Warranty
3 Year Consumer/Commercial
Available to California
Not Available to Ship to California
What's in the Box
Includes engine, owner's manual and exhaust gaskets.
Dimensions
Weight
100.0 lb
Power
Displacement
627cc
Power Output
23.0 Gross HP
Max RPM
3600
Crankshaft
Orientation
Horizontal
Type
Threaded
Diameter
1"
Length
3-1/4"
Dimensions
1" x 3-1/4"
End Tapped Size
Threaded
Keyway
1-14
Rotation Direction
Counterclockwise
Other Engine Specifications
Starter Type
12 Volt Gear Drive
Ignition System
Electronic Spark
Carburetor
Float
Number of Cylinders
Two
Air Cleaner
Dual Element
Oil Cooler
Yes
Oil Capacity
48 oz
Fuel Tank Capacity
None
Fuel Pump
Yes
Lubrication System
Full Pressure with Spin-On Oil Filter
Controls
Manual Friction / Remote
Bore x Stroke
2.97" x 2.76"
Compression Ratio
8.4:1
Charging System
16 Amp DC Alternator
Muffler
Not Included
Engine Notes
Remote and Manual Choke, Flange Mounting
Applications
Equipment Manufacturers
Monarch
Equipment Types
Water Pumps
