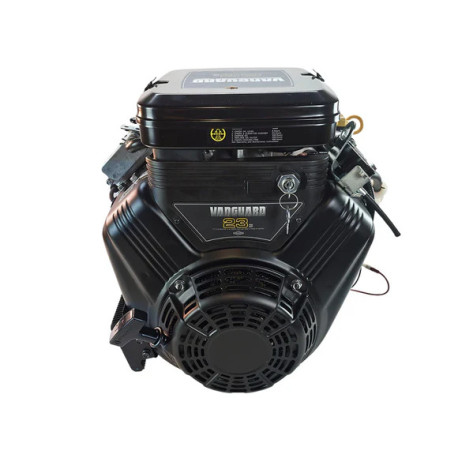

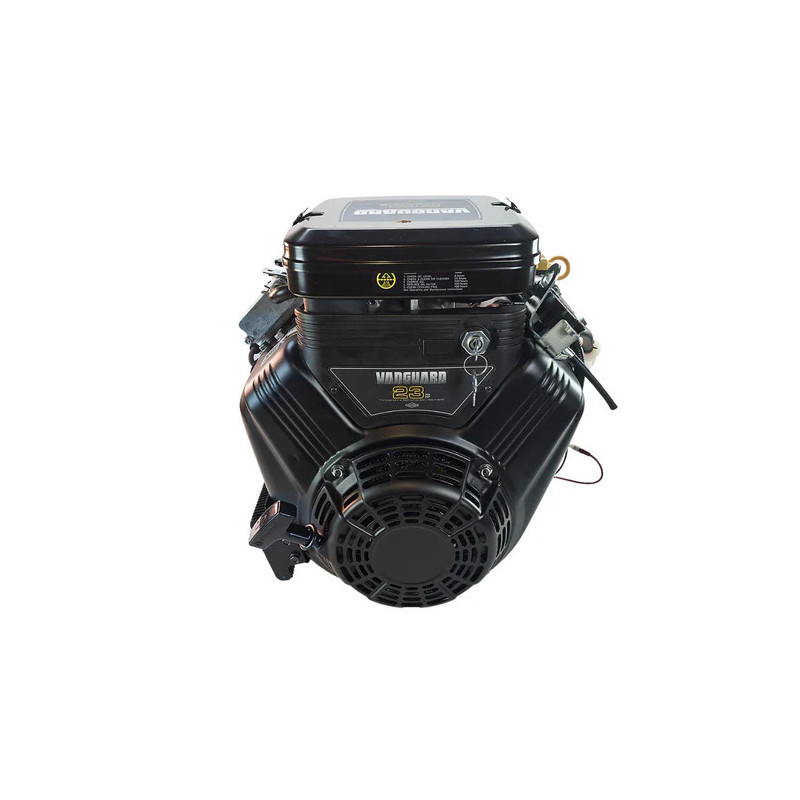

> >Briggs & Stratton 386447-0515-G1 Horizontal Vanguard Engine
Briggs & Stratton 386447-0515-G1 Horizontal Vanguard Engine View larger

Briggs & Stratton 386447-0515-G1 Horizontal Vanguard Engine

RE119

New product

Briggs & Stratton 386447-0515-G1 Horizontal Vanguard Engine, Taper x 3-21/64" Crankshaft, 5/16"-24 Drilled & Tapped, 2.25/12" Keyway, 16 Amp DC Alternator Charging System, 3750 Max RPM, 23.0 Gross HP, 627cc

More details

1000 Items

In stock

USD 1,074.00

More info

Briggs & Stratton 386447-0515-G1 Horizontal Vanguard Engine

Engine Information
Brand
Briggs & Stratton
Model Number
386447-0515-G1
Internal ID
BS-386447-0515-G1
Warranty
3 Year Limited Commercial
Available to California
Not Available to Ship to California
What's in the Box
Includes engine, owner's manual and exhaust gaskets.
Dimensions
Weight
95.0 lb
Power
Displacement
627cc
Power Output
23.0 Gross HP
Max RPM
3750
Crankshaft
Orientation
Horizontal
Type
Tapered
Diameter
Taper
Length
3-21/64"
Dimensions
Taper x 3-21/64"
End Tapped Size
5/16"-24
Keyway
2.25/12"
Other Engine Specifications
Starter Type
12 Volt Gear Drive
Carburetor
Float
Air Cleaner
Dual Element
Oil Cooler
Yes
Oil Capacity
48 fl oz
Fuel
Gasoline
Fuel Tank Capacity
NA
Fuel Pump
Yes
Lubrication System
Full Pressure with Spin-On Oil Filter
Controls
Adjustable
Bore x Stroke
2.97" x 2.76"
Charging System
16 Amp DC Alternator
Flywheel
Heavy - Cast Iron
Muffler
No
Engine Notes
Supress Afterfire Solenoid
