> >Briggs & Stratton 356447-0050-G1 Horizontal Engine

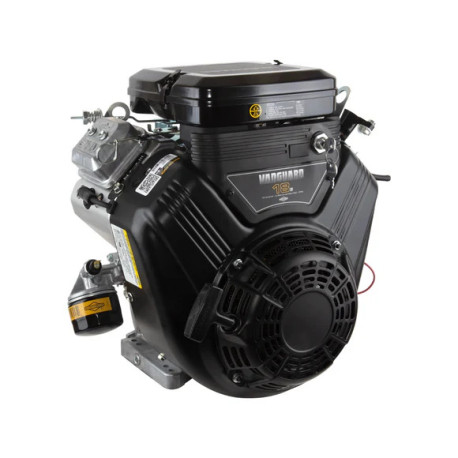

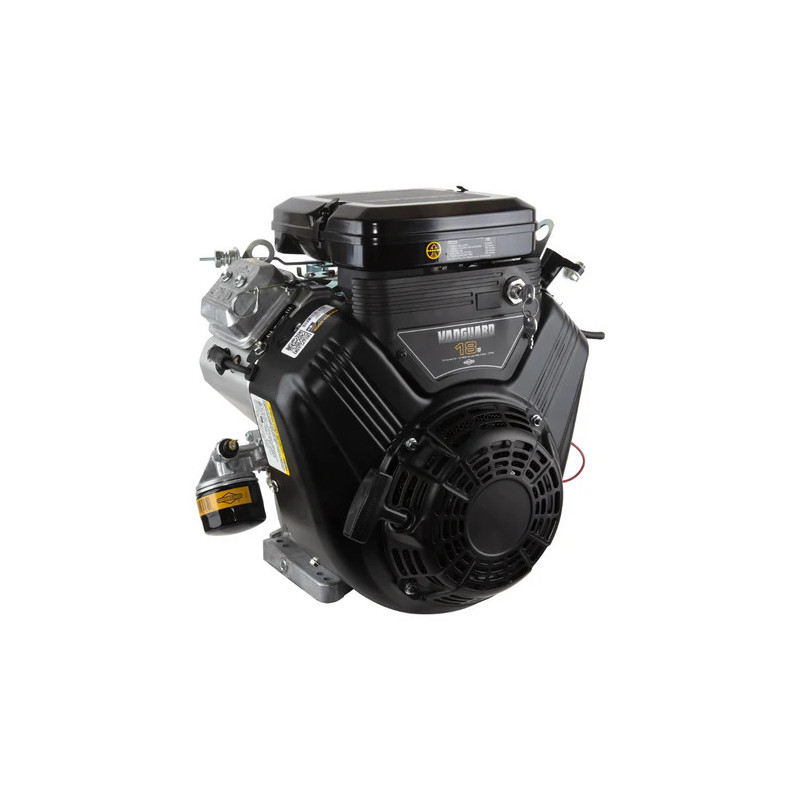

Briggs & Stratton 356447-0050-G1 Horizontal Engine View larger

Briggs & Stratton 356447-0050-G1 Horizontal Engine

RE109

New product

Briggs & Stratton 356447-0050-G1 Horizontal Vanguard Engine, 570cc, 18.0 Gross HP, 1" x 3-1/4" Threaded Crankshaft, 1-14 Keyway, 12V Gear Drive Start with 16 Amp DC Alternator, No Muffler/No Fuel Tank

More details

1000 Items

In stock

USD 1,023.00

More info

Briggs & Stratton 356447-0050-G1 Horizontal Engine

Engine Information
Brand
Briggs & Stratton
Model Number
356447-0050-G1
Internal ID
BS-356447-0050-G1
Replaces Models
356447-3077-G1, 356447-0077-E1, 356447-0077-G1, 356447-0189-G1, 356447-0189-E1, 356447-0171-G1, 356447-0171-E1, 350447-1377-E1, 350447-1110-E1, 350447-1080-E1, 350447-1080-A1, 350447-1077-E1, 350447-1077-A2, 350447-1077-A1, 350447-0080-01, 350447-0077-01, 350447-1080, 350442-1172-A1, 294447-0325-01
Warranty
3 Year Consumer & Commercial
Available to California
Not Available to Ship to California
What's in the Box
Includes engine, owner's manual and exhaust gaskets.
Dimensions
Weight
77.0 lb
PTO Height
5-1/4"
Power
Displacement
570cc
Power Output
18.0 Gross HP
Max RPM
3600
Crankshaft
Orientation
Horizontal
Type
Threaded
Diameter
1"
Length
3-1/4"
Dimensions
1" x 3-1/4"
End Tapped Size
Threaded
Keyway
1-14
Rotation Direction
Counterclockwise
Other Engine Specifications
Starter Type
12 Volt Gear Drive
Carburetor
Float
Number of Cylinders
Two
Cylinder Bore
Cast Iron Sleeve
Air Cleaner
Dual Element
Oil Cooler
No
Oil Capacity
48 fl oz
Low Oil Alert
Yes
Low Oil Shutdown
No
Fuel
Gasoline
Fuel Tank Capacity
None
Fuel Pump
Yes
Lubrication System
Full Pressure with Spin-On Oil Filter
Controls
Adjustable / Manual Friction / Remote
Bolt Circle
5", 6-1/2", 7-3/4"
Bore x Stroke
2.83" x 2.76"
Charging System
16 Amp
Flywheel
Heavy
Muffler
No
