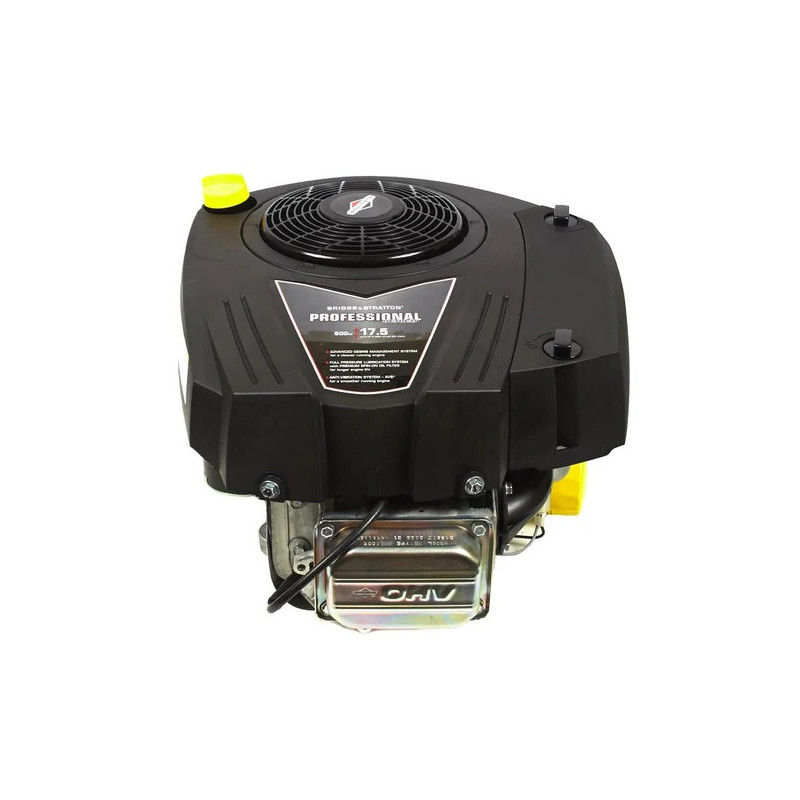

> >Briggs & Stratton 31S977-0005-G1 Vertical Engine

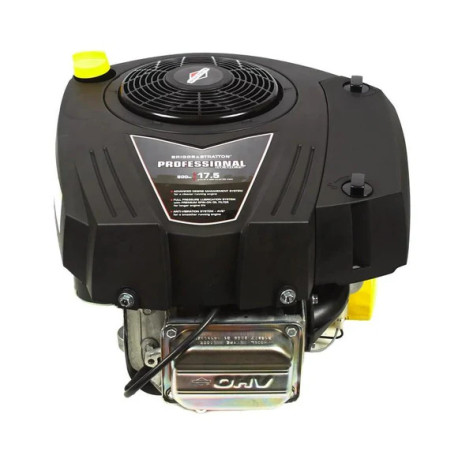

Briggs & Stratton 31S977-0005-G1 Vertical Engine View larger

Briggs & Stratton 31S977-0005-G1 Vertical Engine

RE103

New product

Vertical Engine Briggs & Stratton Intek Series Single Cylinder Riding Mower Engine, 500cc, 17.5 HP, 1" x 5-5/32" Crankshaft

More details

1000 Items

In stock

USD 949.00

More info

Briggs & Stratton 31S977-0005-G1 Vertical Engine

Engine Information
Brand
Briggs & Stratton
Model Number
31S977-0005-G1
Internal ID
BS-31S977-0005-G1
Warranty
2 Year Limited Consumer
Available to California
Not Available to Ship to California
What's in the Box
Includes engine, owner's manual and exhaust gaskets.
Dimensions
Weight
75.0 lb
Power
Displacement
500cc
Power Output
17.5 Gross HP
Max RPM
3300
Crankshaft
Orientation
Vertical
Type
Straight
Diameter
1"
Length
3-5/32"
Dimensions
1" x 3-5/32"
End Tapped Size
7/16"-20
Keyway
1/4"
Other Engine Specifications
Starter Type
12 Volt Gear Drive Starter
Carburetor
Choke-a-Matic
Air Cleaner
Dual Element
Oil Capacity
48 fl oz
Fuel
Gasoline
Fuel Pump
Yes
Governor System
Mechanical
Controls
Remote
Bore x Stroke
3.56" x 3.06"
Charging System
9 Amp DC Alternator
Flywheel
Heavy - Cast Iron
Muffler
No
Engine Notes
Choke-a-Matic, Remote Stop
